New Arrival China Automatic Laundry Folding Machine - folding machine – Taifeng
New Arrival China Automatic Laundry Folding Machine - folding machine – Taifeng Detail:
1. The name and type of the machine.
ZD-300 Folding Machine
2. Function, feature of the machine.
industrial laundry sheet folding machine
nice appearance
ease of operation
VFD adopted
human-computer interface/intelligent controlling system
LCD screen
long service life
competitive price
ISO 9001
high quality stainless steel
safety protection
anti-jamming
high efficiency

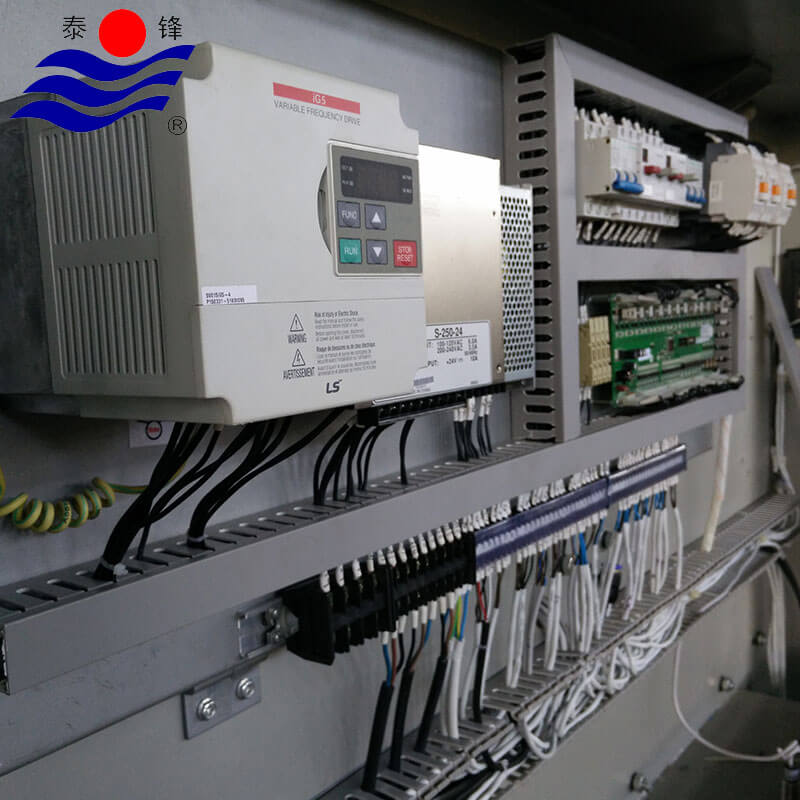

Mitsubishi FX2N-24M programmable logic controller, high speed and large capacity.
Mitsubishi F930 touch screen offers better human-computer interface. Operator can manipulate the machine based on the display of the screen, which means the machine can offer online help and some prompts. Therefore, operator can manipulate the machine correctly and avoid mistakes.
VFD007M43 offers soft start and make the machine suit all kinds of ironers.
5 folds can be finished under the supervisory control of computer. (Programmable)
Using Infrared Detection System instead of Mechanical Pulse Counting Device.
Dual channel folding function, double the speed of folding small linen, low energy consumption.
Range of adjustment of running speed is large which can match up all kinds of ironers.
Auto-diagnosis, good safety system, self-maintenance of detection point.
Precise photoelectric sensors.
Relay output for computer chip, reduction of machine fault point, convenient detect and repair.
All control assemblies are using low voltage components(24V), safe and reliable, ease of repair.
All control valves are using pneumatic control, fast and reliable, pro-environmental.
Safety switches make the machine safe and reliable.
Awards
Domestic origination.
National patent and notional silver award.
National Torch Programme Project.
National new product.
One of the nineteen kinds of import substitutes.
3. Specification
|
MODEL |
ZD-3400 |
|
Max. Folding Size (mm) |
3300×3300 |
|
Max. Folding Times |
5 |
|
Folding Speed (m/min) |
10-50 |
|
Folding Capacity (pcs/h) |
800 |
|
Air Compressor (Mpa) |
0.6-0.8 |
|
Power Input (kw) |
1.87 |
|
External Power Wire Size (mm2) |
4 |
|
Power |
380V/50Hz |
|
Air Compressor (m3/min) |
0.8 |
|
Dimension (mm) |
4320×2880×1750 |
|
Weight (kg) |
1820 |
4. Documentation
1）Operational manual with English will be given at the time of dispatch of machine.
2）All our machines guaranteed for trouble free performance for a period of 12 months from commissioning.
3）Copy of ISO 9001 and CE certificate.
5. Delivery data and service after sell
1) Payment Terms
T/T LC WU
30% in advance, 70% before delivery.
2) Delivery Date
15-30 days upon your order Qty
3) Service After Sell
Installation and service after sell for free for one year and with spare parts for one year. The air ticket from china to Client’s and Client’s to china will be paid by the buyer and the buyer should supply our engineer’s room and food!
4) Validity
30 days from the date of quotation
6. Quotation
FOB SHANGHAI（380V 50Hz）
ZD-3400 12300 USD

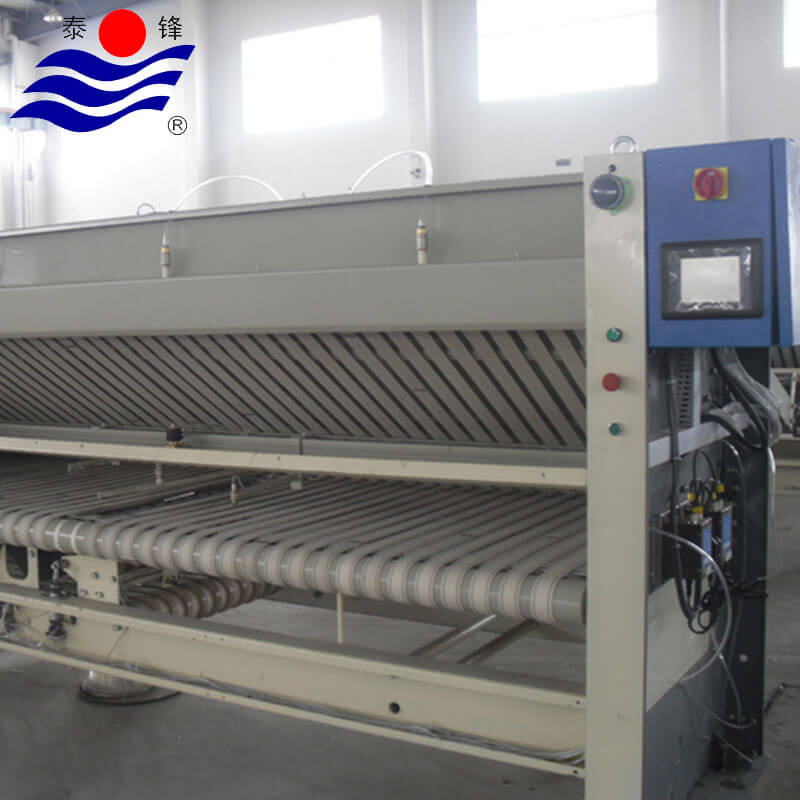

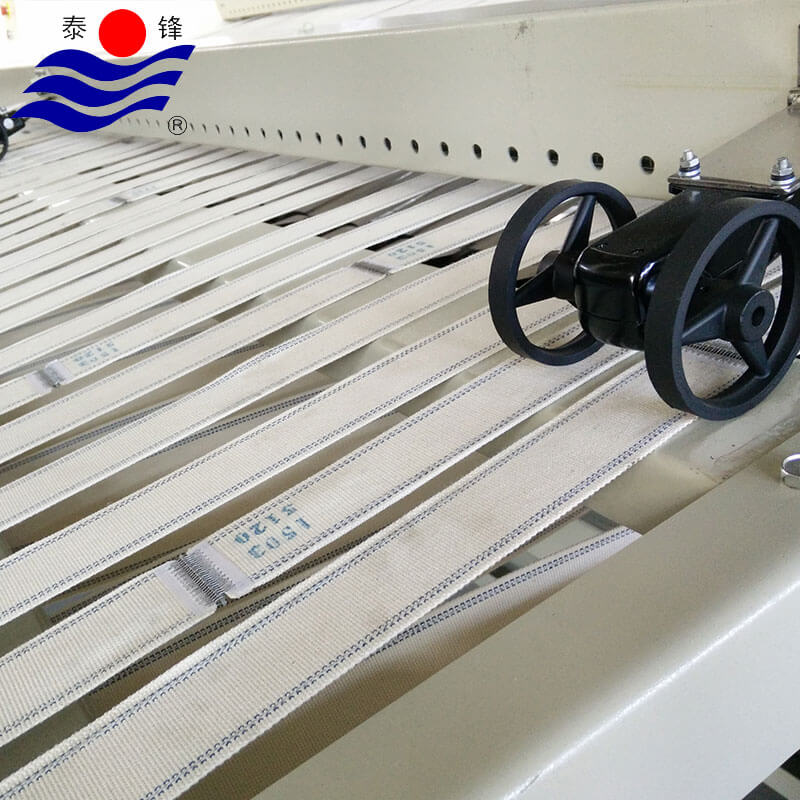

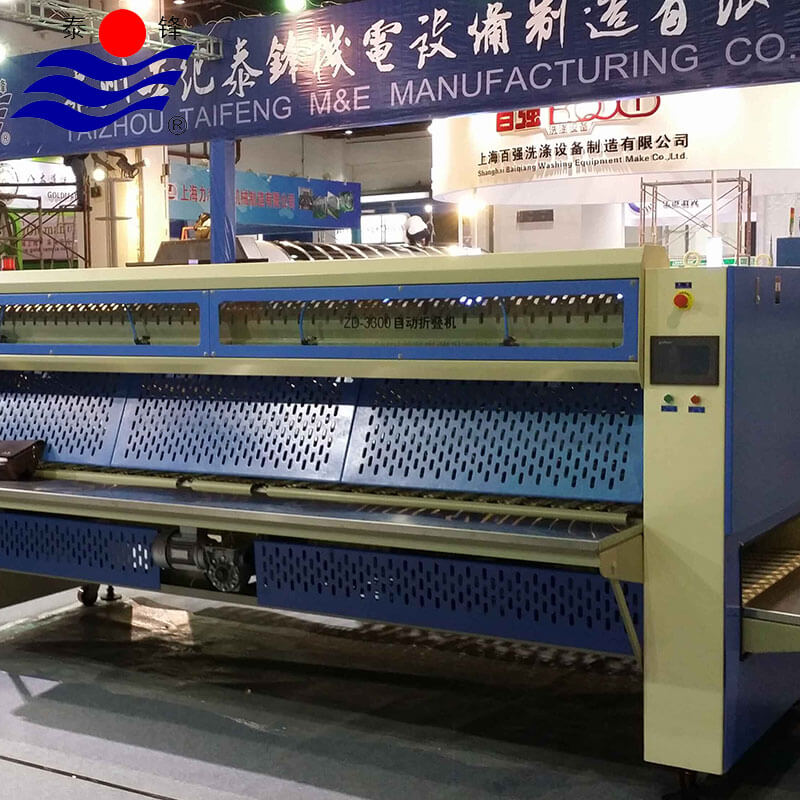

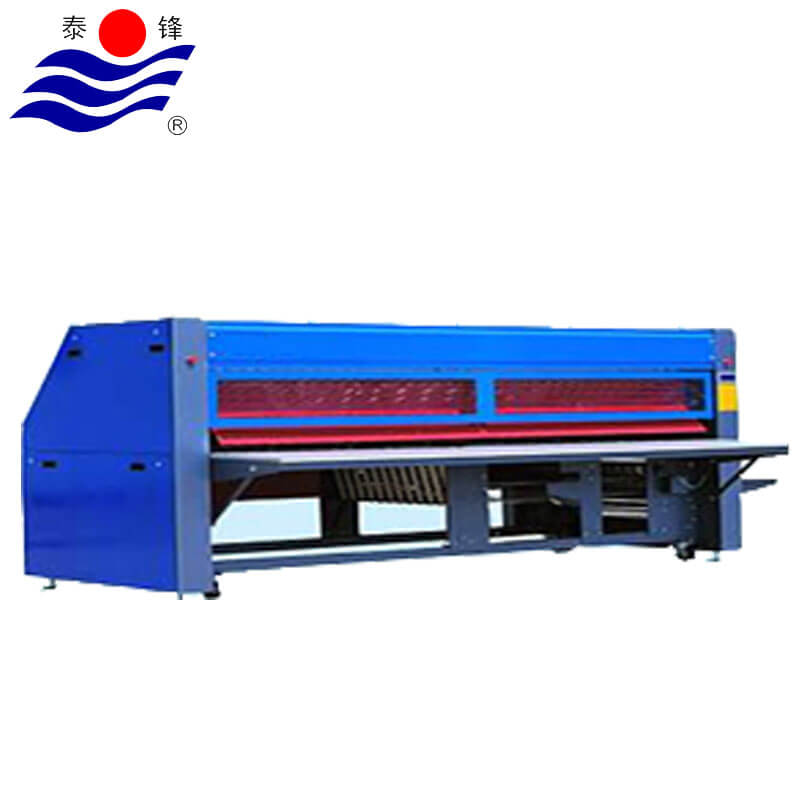

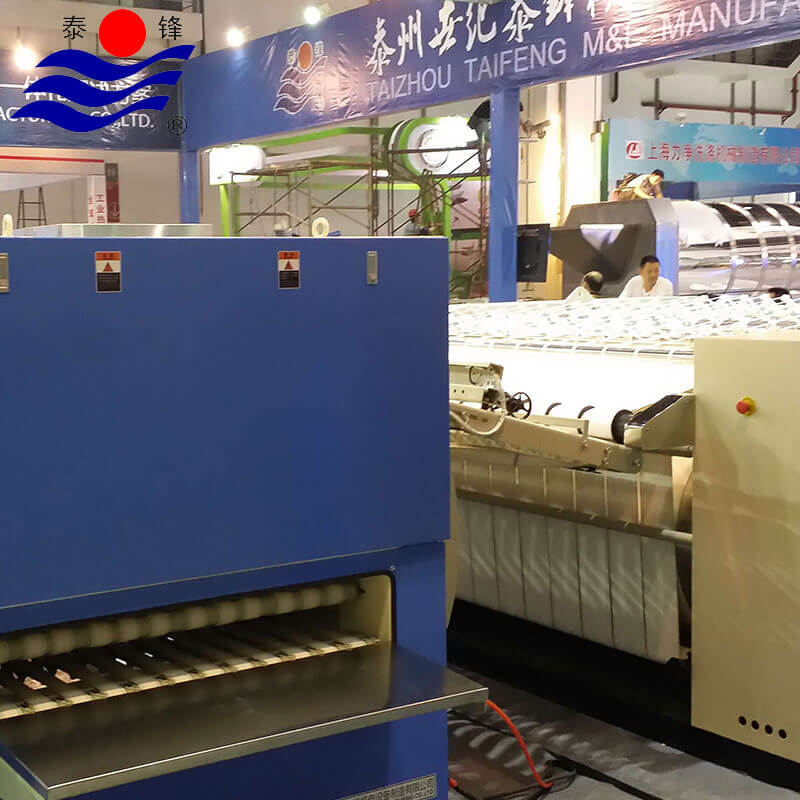

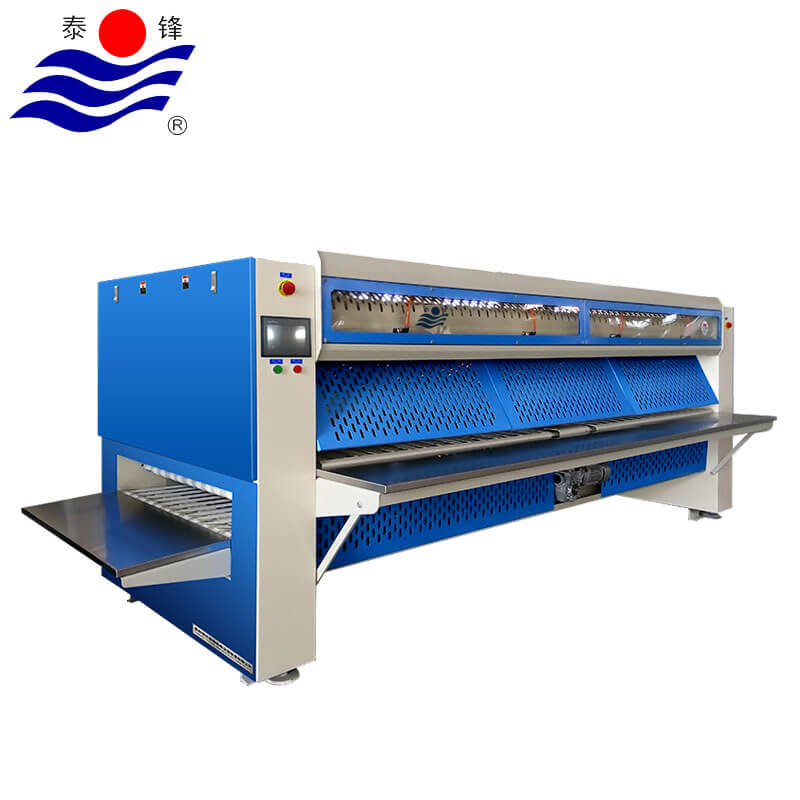

Product detail pictures:
